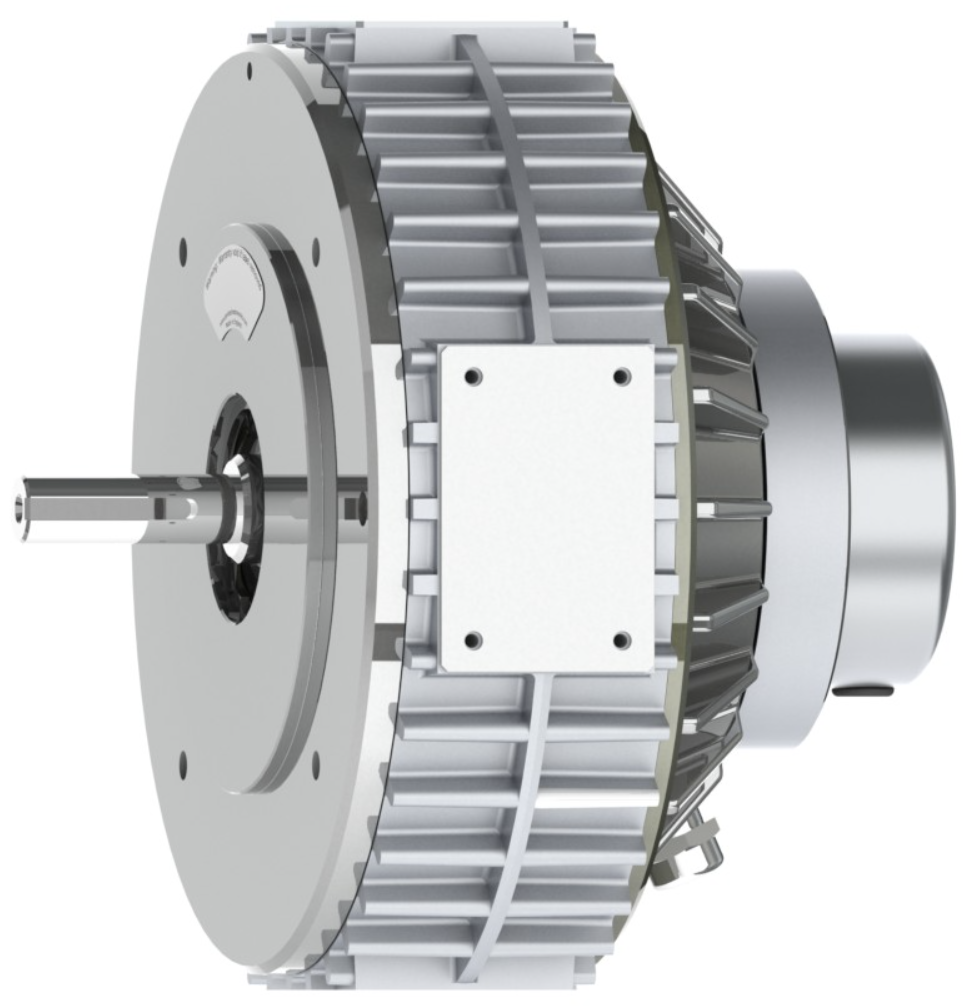

GR19 Motor

Printed armature motor

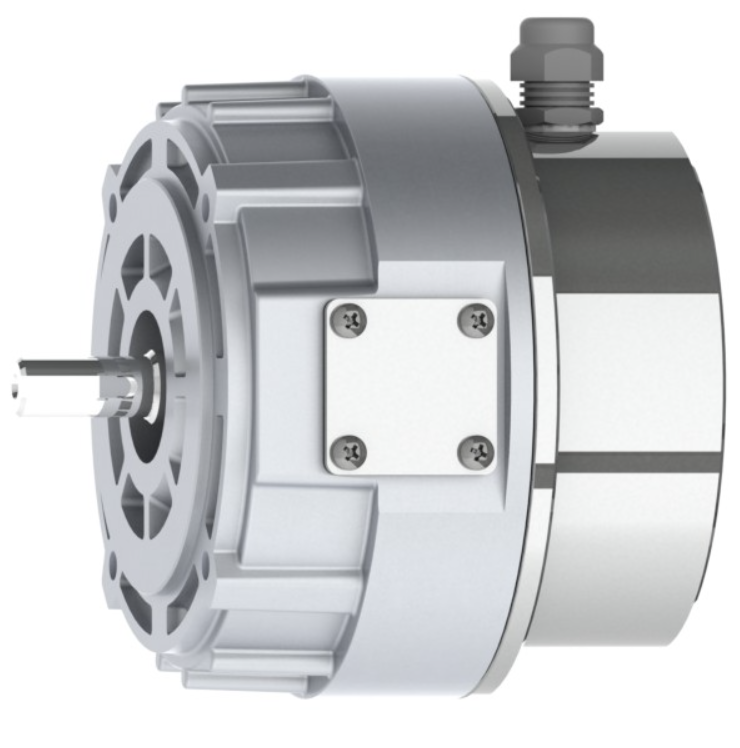

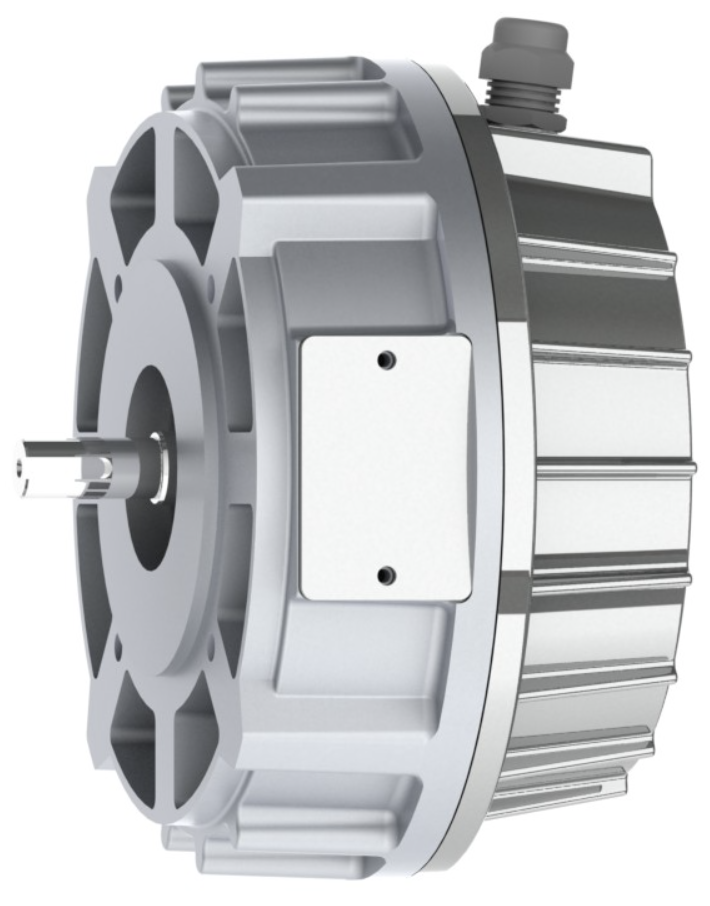

The GR series (Ruggedised Series) is a high power pancake motor range with a heavily ruggedised motor casing

GR19

Product details

The GR series (Ruggedised Series) is a high power pancake motor range but with a heavily ruggedised motor casing. The range is available in 12cm, 16cm and 19cm armature diameter sizes, with standard and high power AlNiCo magnet options

  • Rugged Series Printed Armature Servo Motor
  • 19cm Armature
  • Ironless Ultra Flat Construction
  • Zero Cogging - Ultra Low Velocity Ripple
  • Brushed DC Motor incorporating AlNiCo Magnet Technology

Rated

  • Torque 3.2 Nm
  • Power 1,000 W
  • Speed 3,000 RPM
  • Current 14.4 A rms

Peak

  • Torque - - - Nm
  • Power - - - W
  • Voltage 83.0 V
  • Max Speed - - - RPM

Power rating scale

  • GR19 Data Sheet

    GR19 Data Sheet

  • GR19 Drawing

    GR19 Drawing
